MeGUI is one of the newer tools that has been designed with H.264 encoding in mind, while supporting other types of conversion, such as XviD. This guide shows you how to encode a H.264 (MP4) using MeGUI from a DVD as the primary example (instructions for converting other types of video files are also included).
This guide is aimed at intermediate users, basically users that are familiar with DVD conversion/backup and want to experiment with H.264 and MeGUI. As such, basic knowledge of DVD ripping and conversion is required, although brief instructions will be provided in any case.
Software you'll need (all freeware):
Step 1: Installation
Step 2: DVD Ripping
Step 3: D2V Creator
This step will use MeGUI's D2V Creator tool to create a D2V file needed for MeGUI/AviSynth to handle MPEG-2 files. This step is required only for MPEG-2 files - all other types of inputs do not require a D2V file and can be loaded straight into AviSynth and therefore, you can skip this step and go to the next page/step (Step 4: AviSynth Script Creator).
Start MeGUI. I like to first clear the job queues of previously finished jobs. This is optional, but it might help to make things clearer. To do this, click on the "Queue" tab and then click on the "Clear" button.

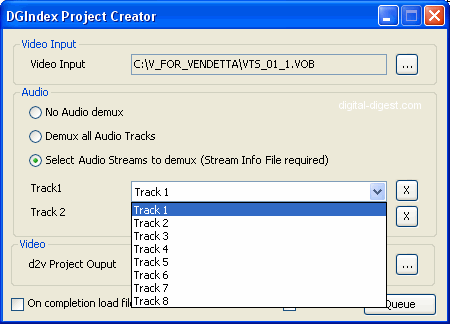

From the "Tools" menu, select "D2V Creator". In the "Video Input" section, load the first ripped VOB file of the movie titleset (the rest of the files in the set will be loaded automatically). You will get an error message about not being able to find DVD Decrypter generated info files, this is fine (as we did not use DVD Decrypter's IFO mode) and
press "OK" to skip this error.
In RipIt4Me's step 1, you were asked to take note of the audio track numbers. We'll need it here select which audio track(s) to demux - you can select more than one track if you want the encoded file to have multiple audio tracks. Alternatively, you can just select the demux all the tracks and then choose the correct audio track(s) later on.
The default save directory is the same directory as your loaded DVD VOB files - change this if you want to.
Select both the "On completion load files", "and close" checkboxes and
press the "Queue" button. You are now returned to MeGUI -
click on the "Queue" tab and press the "Start" button to start the D2V creation. When processing has finished, the status of the queued job will read "Done" and the created D2V file will be loaded into the AviSynth Script Creator ready for the next step. This can take a while, so please be patient - the status window's progress bar may not move, but don't worry, DGIndex is working
Step 4: AviSynth Script Creator
Step 5a: Video Encoding Options MP4
Step 5b: Video Encoding Options XVID
Step 6: Audio Encoding Options
Step 7: AutoEncode and starting the encoding
MeGUI Custom x264/AVC video profiles. (Updated: 2006-12-21)
