MeGUI is one of the newer tools that has been designed with H.264 encoding in mind, while supporting other types of conversion, such as XviD. This guide shows you how to encode a H.264 (MP4) using MeGUI from a DVD as the primary example (instructions for converting other types of video files are also included).
This guide is aimed at intermediate users, basically users that are familiar with DVD conversion/backup and want to experiment with H.264 and MeGUI. As such, basic knowledge of DVD ripping and conversion is required, although brief instructions will be provided in any case.
Software you'll need (all freeware):
Step 1: Installation
Step 2: DVD Ripping
Step 3: D2V Creator
Step 4: AviSynth Script Creator
Step 5a: Video Encoding Options MP4
We'll now set up the H.264 encoding options in the x264 encoder. This step has the most options to configure, and too many to cover in this guide alone. What I'll recommend is to use one of Sharktooth's profiles, and if you need further explanation of the options, refer to our
x264 Options Explained article.

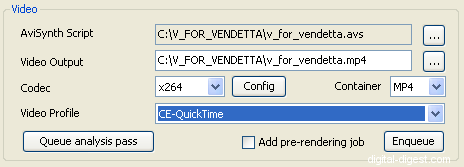

In the MeGUI "Input" section, select "x264" as the "Codec" and "MP4" as the "Container".
For the "Video Profiles" option, select one of the x264 encoding profiles so we don't have to manually configure all the settings (unless you want to
, then click on the "Config" button to do so). A full explanation of what each profile is used for can be found on the
official forum thread for the profiles. For compatibility, I recommend using the CE profiles, particularly the "CE-QuickTime" profile (this will make the MP4 file playable in Apple QuickTime 7 or newer). The "CE-Baseline" profile is also fully QuickTime compatible, but uses less advanced features (and so will be faster during encoding at the expense of some quality).
Step 5b: Video Encoding Options XVID
Step 6: Audio Encoding Options
Step 7: AutoEncode and starting the encoding
MeGUI Custom x264/AVC video profiles. (Updated: 2006-12-21)
